0.75" x 0.75" x 1" H Standard

Home › 0.75" x 0.75" x 1" H Standard

Other Grafting Products

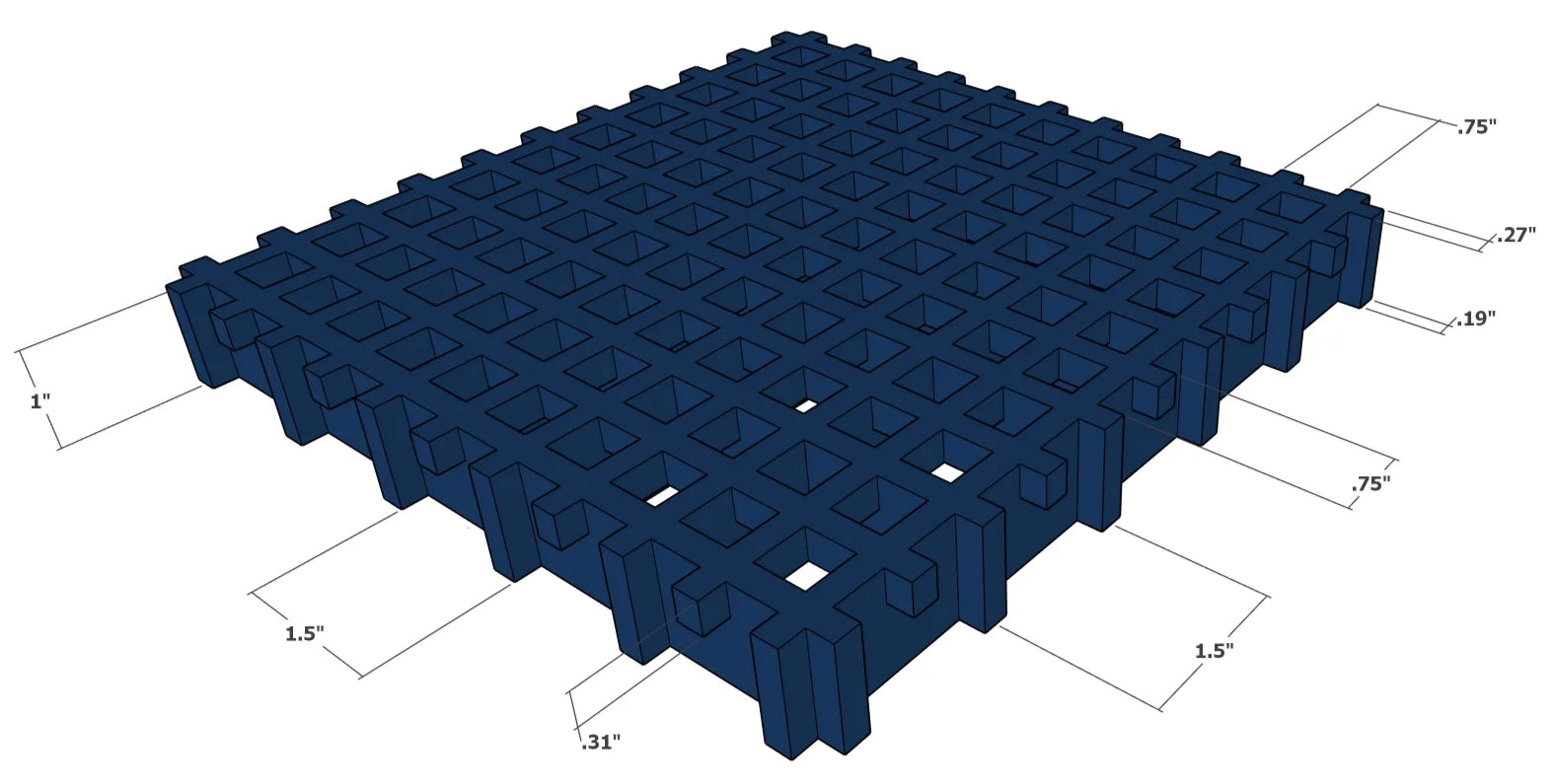

Imperial View

Metric View

Product Overview

0.75" x 0.75" x 1" H Standard

(38 x 38 x 38 mm) – Standard Mesh

  • Open Area: 67%
  • Weight: 3.8 lb/ft² (18.55 kg/m²)
  • Mesh Panel Size: 5 ft x 12 ft
  • Mesh Size: 1.5" x 1.5"
  • Resin Options: ISO, VE
REQUEST A QUOTE BUY NOW

Dimensions

Parameter Imperial Metric
Mesh Size 1.5" x 1.5" 38 x 38 mm
Thickness 1.5" 38 mm
Bar Thickness (Top) 0.28 in 7 mm
Bar Thickness (Bottom) 0.20 in 5 mm
Max Panel Width 60 in 1524 mm
Max Panel Length 144 in 3660 mm
Weight 3.8 lb/ft² 18.55 kg/m²

🔹0.75" x 0.75" x  1" H (19mm x 19mm x  25mm H) Minimesh

  • Open Area: 44%
  • Available Online: false
  • Mesh Length(mm): 19
  • Mesh Weight(mm): 15.26
  • Mesh Thickness(mm): 25
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 15.26
  • Mesh Length (in): 0.75
  • Mesh Thickness(in): 1.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 3.1
  • Available Panel Sizes: 4x8, 4x10, 4x12

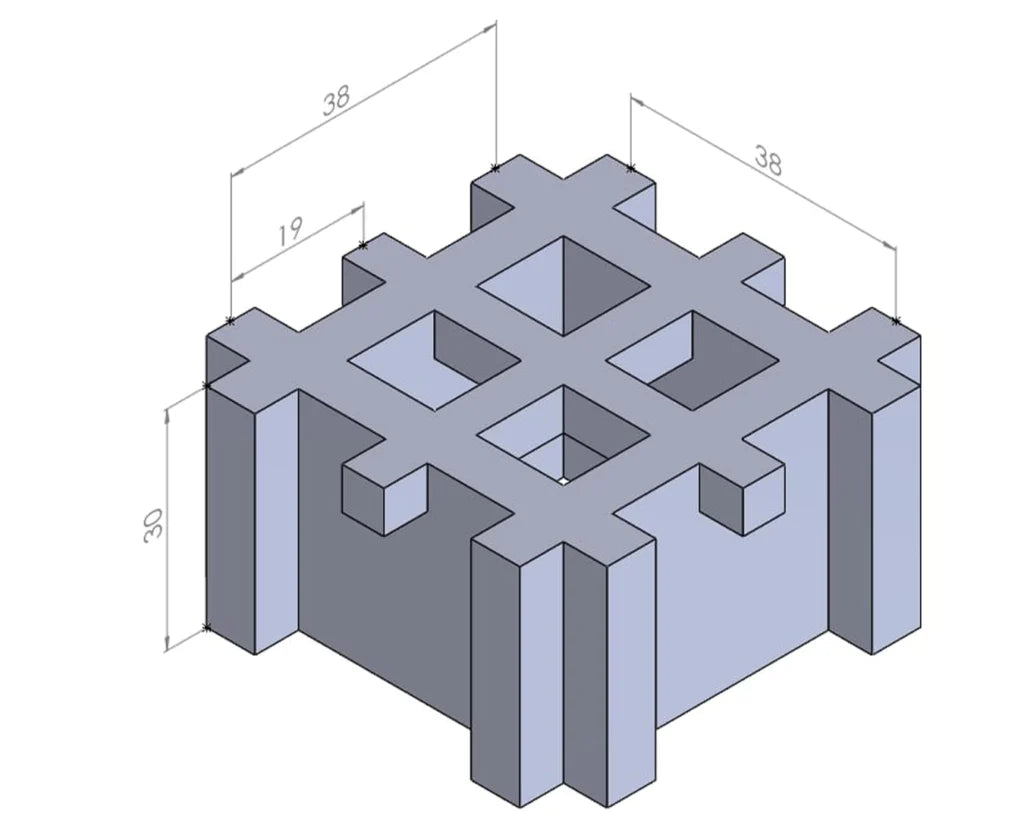

🔹0.75" x 0.75" x  1.2" H (19mm x 19mm x  30mm H) Minimesh

  • Open Area: 44%
  • Available Online: false
  • Mesh Length(mm): 19
  • Mesh Weight(mm): 18.31
  • Mesh Thickness(mm): 30
  • Max Panel Width(mm): 991
  • Max Panel Length(mm): 0394
  • Weight (kg/m^2): 18.31
  • Mesh Length (in): 0.75
  • Mesh Thickness(in): 1.20
  • Max Panel Width(in): 39
  • Max Panel Length(in): 159
  • Weight (lb/m^2): 3.8
  • Available Panel Sizes: 3x8, 3x10, 3x12

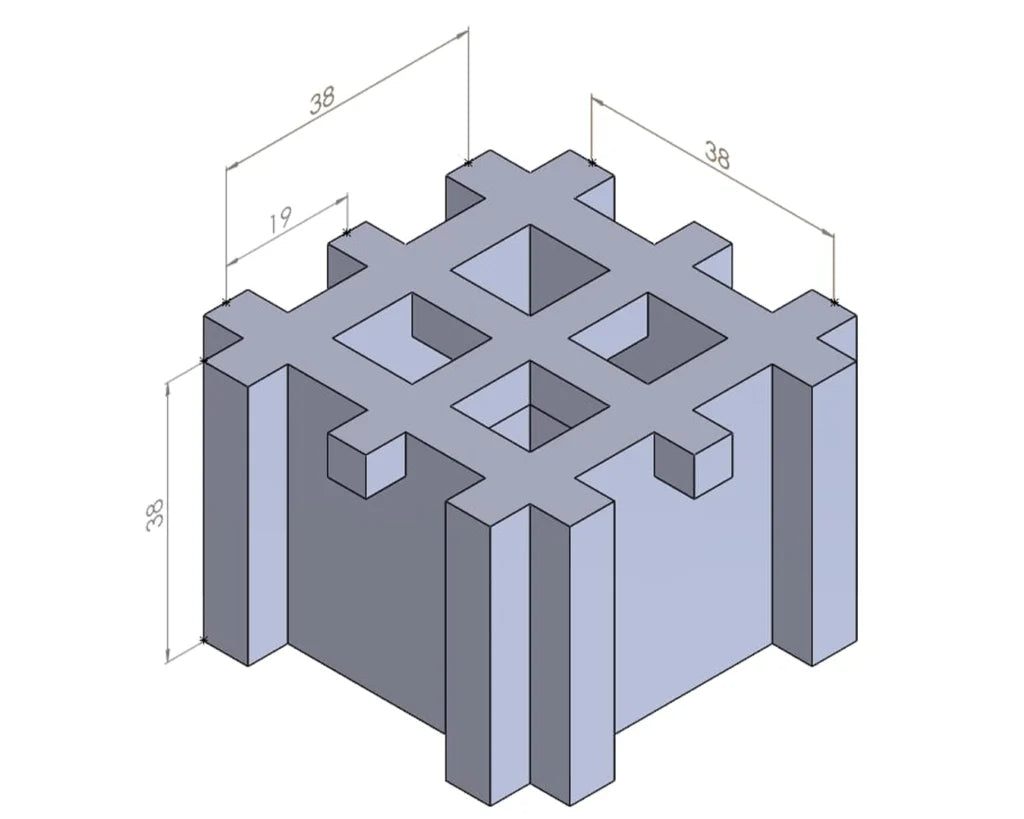

🔹0.75" x 0.75" x  1.5" H (19mm x 19mm x  38mm H) Minimesh

  • Open Area: 44%
  • Available Online: true
  • Mesh Length(mm): 19
  • Mesh Weight(mm): 23.19
  • Mesh Thickness(mm): 38
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 23.19
  • Mesh Length (in): 0.75
  • Mesh Thickness(in): 1.50
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 4.8
  • Available Panel Sizes: 3x8, 3x10, 3x12

🔹0.75" x 4" x  1" H (19mm x 100mm x  25mm H) Standard

  • Open Area: 62%
  • Available Online: false
  • Mesh Length(mm): 19
  • Mesh Weight(mm): 14.65
  • Mesh Thickness(mm): 25
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 14.65
  • Mesh Length (in): 0.75
  • Mesh Thickness(in): 1.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 3.0
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹0.75" x 4" x  1.5" H (19mm x 100mm x  38mm H) Standard

  • Open Area: 62%
  • Available Online: true
  • Mesh Length(mm): 19
  • Mesh Weight(mm): 21.97
  • Mesh Thickness(mm): 38
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 21.97
  • Mesh Length (in): 0.75
  • Mesh Thickness(in): 1.50
  • Max Panel Width(in): 48
  • Max Panel Length(in): 140
  • Weight (lb/m^2): 4.5
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹1" x 2" x  1.5" H (25mm x 50mm x  38mm H) High Capacity

  • Open Area: 44%
  • Available Online: false
  • Mesh Length(mm): 25
  • Mesh Weight(mm): 33.50
  • Mesh Thickness(mm): 38
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 33.50
  • Mesh Length (in): 1.00
  • Mesh Thickness(in): 1.50
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 6.9
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹1" x 2" x  2" H (25mm x 50mm x  50mm H) High Capacity

  • Open Area: 39%
  • Available Online: false
  • Mesh Length(mm): 25
  • Mesh Weight(mm): 41.01
  • Mesh Thickness(mm): 50
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 41.01
  • Mesh Length (in): 1.00
  • Mesh Thickness(in): 2.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 8.4
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹1" x 4" x  1" H (25mm x 100mm x  25mm H) Standard

  • Open Area: 67%
  • Available Online: false
  • Mesh Length(mm): 25
  • Mesh Weight(mm): 12.21
  • Mesh Thickness(mm): 25
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 12.21
  • Mesh Length (in): 1.00
  • Mesh Thickness(in): 1.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 2.5
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹1" x 6" x  1.5" H (25mm x 152mm x  38mm H) Standard

  • Open Area: 64%
  • Available Online: false
  • Mesh Length(mm): 25
  • Mesh Weight(mm): 22.95
  • Mesh Thickness(mm): 38
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 22.95
  • Mesh Length (in): 1.00
  • Mesh Thickness(in): 1.50
  • Max Panel Width(in): 48
  • Max Panel Length(in): 140
  • Weight (lb/m^2): 4.7
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹1.5" x 1.5" x  1" H (38mm x 38mm x  25mm H) Standard

  • Open Area: 68%
  • Available Online: false
  • Mesh Length(mm): 38
  • Mesh Weight(mm): 12.21
  • Mesh Thickness(mm): 25
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 12.21
  • Mesh Length (in): 1.50
  • Mesh Thickness(in): 1.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 2.5
  • Available Panel Sizes: 3x8, 3x10, 3x12, 4x8, 4x10, 4x12

🔹1.5" x 1.5" x  1.2" H (38mm x 38mm x  30mm H) Standard

  • Open Area: 70%
  • Available Online: false
  • Mesh Length(mm): 38
  • Mesh Weight(mm): 14.65
  • Mesh Thickness(mm): 30
  • Max Panel Width(mm): 991
  • Max Panel Length(mm): 0394
  • Weight (kg/m^2): 14.65
  • Mesh Length (in): 1.50
  • Mesh Thickness(in): 1.20
  • Max Panel Width(in): 39
  • Max Panel Length(in): 159
  • Weight (lb/m^2): 3.0
  • Available Panel Sizes: 3x8, 3x10, 3x12

🔹1.5" x 1.5" x  1.5" H (38mm x 38mm x  38mm H) Standard

  • Open Area: 67%
  • Available Online: true
  • Mesh Length(mm): 38
  • Mesh Weight(mm): 18.55
  • Mesh Thickness(mm): 38
  • Max Panel Width(mm): 1524
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 18.55
  • Mesh Length (in): 1.50
  • Mesh Thickness(in): 1.50
  • Max Panel Width(in): 60
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 3.8
  • Available Panel Sizes: 3x8, 3x10, 3x12, 4x8, 4x10, 4x12, 5x8, 5x10,5x12

🔹1.5" x 1.5" x  2" H (38mm x 38mm x  50mm H) High Capacity

  • Open Area: 52%
  • Available Online: false
  • Mesh Length(mm): 38
  • Mesh Weight(mm): 39.20
  • Mesh Thickness(mm): 50
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 39.20
  • Mesh Length (in): 1.50
  • Mesh Thickness(in): 2.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 8.0
  • Available Panel Sizes: 3x8, 3x10, 3x12, 4x8, 4x10, 4x12

🔹1.5" x 1.5" x  2.25" H (38mm x 38mm x  58mm H) High Capacity

  • Open Area: 52%
  • Available Online: false
  • Mesh Length(mm): 38
  • Mesh Weight(mm): 45.00
  • Mesh Thickness(mm): 58
  • Max Panel Width(mm): 0411
  • Max Panel Length(mm): 9883
  • Weight (kg/m^2): 45.00
  • Mesh Length (in): 1.50
  • Mesh Thickness(in): 2.25
  • Max Panel Width(in): 41
  • Max Panel Length(in): 157
  • Weight (lb/m^2): 9.2
  • Available Panel Sizes: 3x8, 3x10, 3x12

🔹1.5" x 6" x  1.5" H (38mm x 152mm x  38mm H) Stair Tread

  • Open Area: 74%
  • Available Online: false
  • Mesh Length(mm): 38
  • Mesh Weight(mm): 22.95
  • Mesh Thickness(mm): 38
  • Max Panel Width(mm): 615
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 22.95
  • Mesh Length (in): 1.50
  • Mesh Thickness(in): 1.50
  • Max Panel Width(in): 24.25
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 4.7
  • Available Panel Sizes: 4x8, 4x10, 4x12

🔹2" x 2" x  0.6" H (50mm x 50mm x  15mm H) Square Fencing

  • Open Area: 72%
  • Available Online: false
  • Mesh Length(mm): 50
  • Mesh Weight(mm): 6.25
  • Mesh Thickness(mm): 15
  • Max Panel Width(mm): 919
  • Max Panel Length(mm): 0394
  • Weight (kg/m^2): 6.25
  • Mesh Length (in): 2.00
  • Mesh Thickness(in): 0.60
  • Max Panel Width(in): 39
  • Max Panel Length(in): 159
  • Weight (lb/m^2): 1.3
  • Available Panel Sizes: 3x8, 3x10, 3x12, 4x8, 4x10, 4x12

🔹2" x 2" x  2" H (50mm x 50mm x  50mm H) Standard

  • Open Area: 72%
  • Available Online: true
  • Mesh Length(mm): 50
  • Mesh Weight(mm): 23.50
  • Mesh Thickness(mm): 50
  • Max Panel Width(mm): 1220
  • Max Panel Length(mm): 3660
  • Weight (kg/m^2): 23.50
  • Mesh Length (in): 2.00
  • Mesh Thickness(in): 2.00
  • Max Panel Width(in): 48
  • Max Panel Length(in): 144
  • Weight (lb/m^2): 4.8
  • Available Panel Sizes: 4x8, 4x10, 4x12
  • Panels are supplied closed-web by default
  • Custom cuts and sizes are available upon request

Configuration Options

  • Resin: ISO, Vinyl Ester
  • Surface: Concave, Gritted, Covered
  • Color: Standard RAL + custom matching
  • Grit: Fine to industrial grades
  • Fasteners: M-type (standard), L-type, C-type
